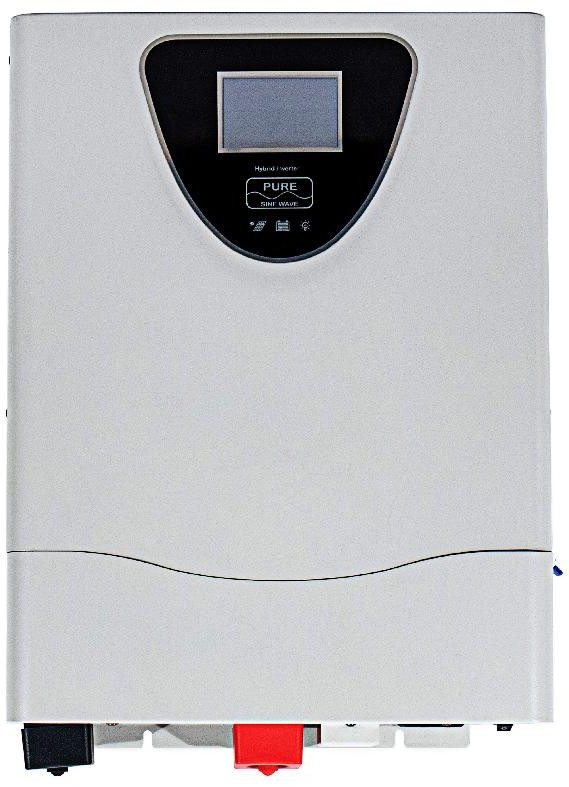

4KW 触摸式挂壁式逆控一体机

  • 功率:4WK
  • 型号:触摸式挂壁式逆控一体机
  • 产地:河北保定
  • 价格:1K~5K
  • 产品详情




功率(W) Power



4KW

市电输入范围

Mains power input range



AC90V-130V/AC165V-280V

逆变输出电压

Inverter output voltage



110V/230v±3%

充电电流 Charging current

10A-25A

逆变输出频率

Inverter output frequency

50/60hz±1%

直流电输入 DC input

24V/48V

伏输入电压 PV input voltage

18V/30V-180VDC

光伏输入电流 PV input current

30A-60A

太阳能控制器 Solar controller

MPPT

输出波型 Output wave pattern

纯正弦波 Pure sine wave

失真度 Distortion degree

3%

转换时 Conversion time

4 毫秒自动转 Within 4ms automatic change

过载能力 Overload capacity

120%10min,1501min

峰值因素 Peak factor

3:01:00



使用海拔高度 Use altitude

≤4000m (海拔高于 1000 米降容使用

elevation  Height above 1000M can drop to use

噪音 noise

≤40db

相对温度 Relative temperature

0-90%不结 No condensation

转换效率 conversion efficiency

≥85%

产品尺寸 Product size(cm)

(长 L* W* H)57*36*18

外包尺寸 Outsourcing size(cm)

(长 L* W* H)58*40*23

净重 Net weight(KG)

28

毛重 Gross weight(KG)

30







保护功能 Protection function

短路保护,超载保护,过压保护,欠压保护,过温保护,电池防反接保护(反接保护可选)

Short circuit protection, overload protection, over voltage protection, under voltage protection, over temperature protection, battery anti reverse connection

protection (reverse connection protection is optional)
